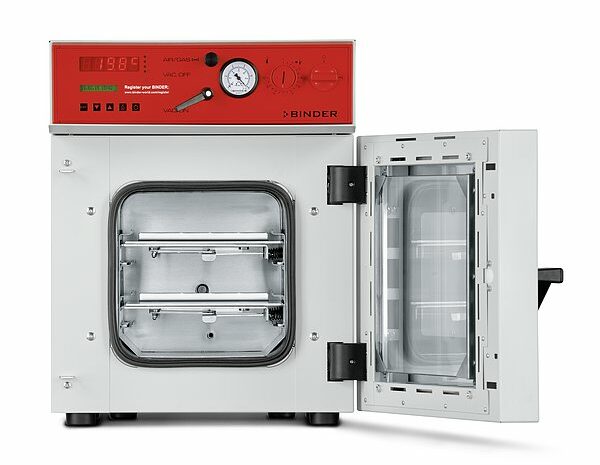

Product Description

BENEFITS

• Fast and gentle drying
• Direct heat transfer through large thermal conducting plates
• Safe work with one-of-a-kind safety concept
• Coordinated, modular system with vacuum pump and vacuum module

MAIN FEATURES

• Temperature range: room temperature plus 15 °C to 200 °C
• APT.line™ preheating chamber technology
• Controller with time-segment and real-time programming
• 2 aluminum expansion racks
• Inert gas connection
• Shatterproof, spring-mounted safety glass panel
• Class 2 independent adjustable temperature safety device (DIN 12880)

with visual alarm

• Computer interface: RS 422
• 2 relay outputs, 24 V DC (max. 0.4 A)

ORDERING INFORMATION

TECHNICAL DATA

Description VD023-230V1 VD023UL-120V1

Article Number 9030-0029 9030-0035

Performance Data Temperature

Temperature range 15 °C above ambient temperature to [°C] 200 200

Temperature variation at 100 °C [± K] 1.5 1.5

Temperature fluctuation [± K] 0.1 0.1

Heating-up time to 100 °C [min] 65 65

Vacuum Data

Permitted end vacuum [mbar] 0.01 0.01

Leak rate [bar/h] 0.01 0.01

Electrical data

Rated Voltage [V] 230 120

Power frequency [Hz] 50/60 60

Nominal power [kW] 0.8 0.8

Unit fuse [A] 10 12.5

Phase (Nominal voltage) 1~ 1~

Connections

Vacuum connection with small flange [DN mm] 16 16

Measuring access port with small flange [DN mm] 16 16

Inert gas connection with flow limiter (RP”) 3/8 3/8

Measures

Interior volume [L] 23 23

Net weight of the unit (empty) [kg] 63 63

Permitted load [kg] 35 35

Load per rack [kg] 20 20

Viewing window width [mm] 250 250

Viewing window height [mm] 207 207

Wall clearance back [mm] 100 100

Wall clearance sidewise [mm] 135 135

Internal Dimensions

Width [mm] 285 285

Height [mm] 285 285

Depth [mm] 295 295

Doors

Unit doors 1 1

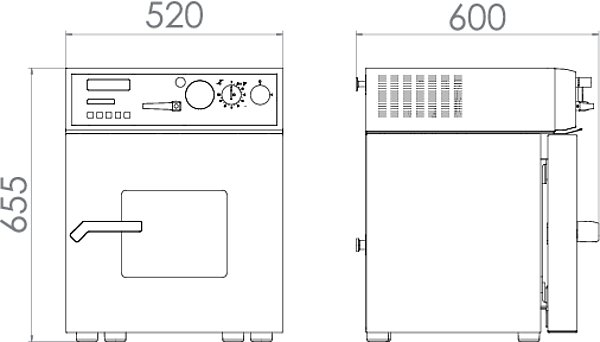

Housing dimensions not incl. fittings and connections

Width net [mm] 515 515

Height net [mm] 665 665

Depth net [mm] 500 500

Fixtures

Number of shelves (std./max.) 2/4 2/4

OPTIONS

Designation Description * Art.-No.

Calibration certificate,

expanded for temperature; for extending the measurement in center of chamber to include another test temperature – 8012-1127

Calibration certificate,

pressure for digital pressure display, measurement at 100 mbar or at specified pressure (range 20 – 900 mbar) – 8012-0440

for temperature, measurement in center of chamber at specified temperature – 8012-1145

temperature measurement incl. certificate, 15- 18 measuring points at specified temperature – 8012-0919 Calibration certificate,

temperature

temperature measurement incl. certificate, 9 measuring points at specified temperature – 8012-0916

Digital pressure display Measuring range from 1 mbar to atmospheric pressure, display accuracy 1 mbar – 8012-0805

Door gasket made of FKM, silicone-free 03 8012-0500

Electric access port 9-pin, vacuum-tight access port for transmitting electrical currents, voltages, or signals (max. 50 V / 2 A per pin;

vacuum connection DN 16 ISO-KF)

– 8012-0262

Expansion rack stainless steel expansion rack instead of standard aluminum expansion rack, incl. calibration – 8012-0616

Temperature

measurement of the

specimen

with flexible Pt 100 sensor and digital specimen temperature display – 8012-0551

* Notes › See last page

ACCESSORIES

Designation Description * Art.-No.

for simple logging and documentation requirements with up to 5 networked units. APT-COM™ 4 BASIC

Edition version 4, BASIC edition 19 9053-0039

for working under GLP-compliant conditions. Measured values are documented in a tamper-proof way in line with

APT-COM™ 4 GLP- the requirements of FDA Regulation 21 CFR 11.

Edition

version 4, GLP edition 19 9053-0042

APT-COM™ 4 convenient unit and user management built on the BASIC edition. Suitable for networking up to 100 units.

PROFESSIONAL

Edition version 4, PROFESSIONAL edition 19 9053-0040

stainless steel – 8009-0101

Expansion rack

aluminum – 8009-0370

pH-neutral detergent concentrated, for gentle remove of residual contaminants; 1 kg – 1002-0016

to receive vacuum pumps, with switchable power socket

Vacuum module 120 V option model – 8012-0273

230 V option model – 8012-0130

Chemical membrane pump with nominal pumping speed 2.0 m³/h, final pressure 7 mbar, ATEX conformity: II 3G IIC

T3 X (only for interior, areas coming in contact with media), including all necessary parts for vacuum connection

120 V option model – 8012-0726

Vacuum module with

chemical membrane

pump VP 1.1

230 V option model – 8012-0723

Chemical membrane pump with nominal pumping speed 3.4 m³/h, final pressure 1.5 mbar, ATEX conformity: II 3G

IIC T3 X (only for interior, areas coming in contact with media), including all necessary parts for vacuum connection

120 V option model – 8012-0727

Vacuum module with

chemical membrane

pump VP 2.1

230 V option model – 8012-0724

* Notes › See last page
