Product Description

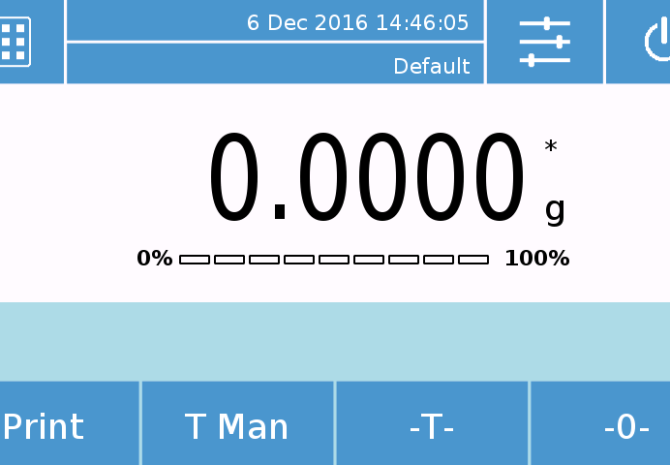

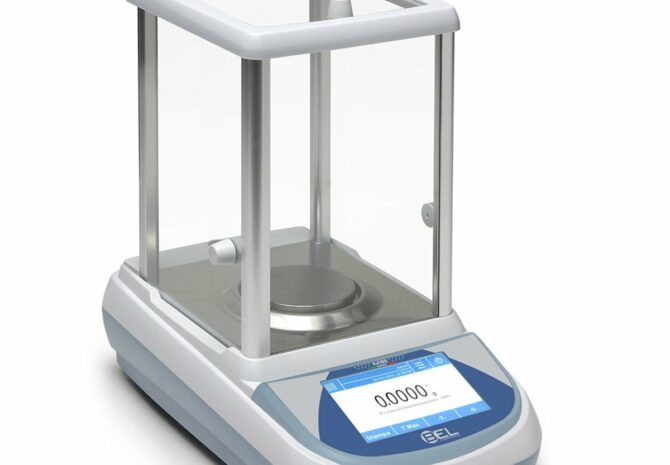

M5 analytical balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.

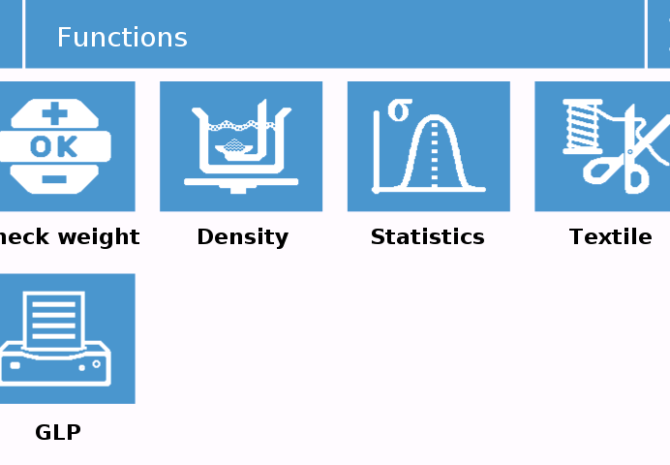

The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.
Overview
- Electromagnetic force restoration weighing system
- Highly integrated weighing cell
- Automatic internal calibration (only “i” models)
- 5’’ Touch-screen Display 800×480
- RS232 serial interface
- Selectable Measuring units
- Internal Database
- GLP
- Multi Languages (EN-DE-FR-IT-SP-PT)
- Multi-user with password protection
- USB port for import/export database data
- Advanced piece counting function with Statistics report
- Textile function to measure fibers with Statistics report

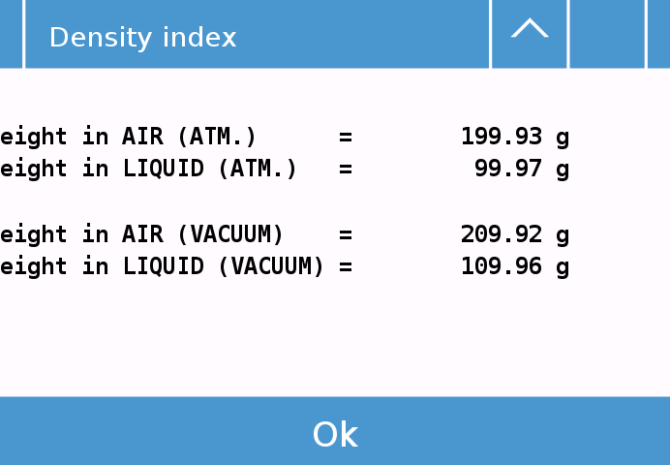

- Advanced Density function, with density index (DI) calculation
- Formulation (Recipe)
- Check weighing
- Percentage weighing
- Weights adding
- Animal weighing
- Max load determination (Peak hold)
- Large glass draft shield with 3 sliding doors for easy access to the items being weighed
Technical Features
| Capacity | 250g |
|---|---|
| Resolution | 0,1mg |
| Calibration | Automatic internal |
| Pan size | Ø 80 mm |
| Response time (sec.) | ≤4 |
| Linearity | ± 0,0003g |
| Repeatibility | 0,1mg |
| Verification | N/A |
|---|---|
| Minimum Load | 10 mg |
| Display | TOUCH-SCREEN 5” |
| Tare Range (Subtractive) | 250g |
| Span Drift In +10…+30°c | ± 2 ppm/°C |
| Interface | RS232 |
| Database Capacity | 3000 |
| Windshield Type And Dimensions | 3 sliding windows / 162x171x225 mm |
| Working Temperature | 5 – 35°C (15-30°C for verified models) |
| Power Supply | 110-230Vac. 50/60Hz, output 24V 500mA 13VA |
| Power Consumption (Max) | 2 Watt |
| Calibrates With (Class) | 200 g (E2) |
| Balance Dimensions (W X L X H) | 215 x 345 x 345 mm |
| Net Weight / Gross Weight, Approx. | 7 / 9,6 Kg |
| Package Size (W X L X H) | 390 x 520 x 630 mm |
